400 Amp Electrical Service Upgrade: When 200A Isn't Enough

What Is a 400 Amp Electrical Service Upgrade?

A 400 amp electrical service upgrade replaces your meter base, service entrance conductors, and main panel. It increases the total power your home can safely draw from the utility. Most Twin Cities homes built before 2010 were designed for 100A or 200A service. Today’s all-electric homes can exceed those limits before every planned circuit is installed.

The “400 amp” label is slightly misleading in residential work. True single 400A panels are industrial-grade equipment. They cost roughly four times a 200A panel and have faced extended lead times during recent supply disruptions. The standard residential solution is a 320/400A-rated meter base feeding two separate 200A panels. You get the same total capacity using off-the-shelf equipment, at lower material cost, and with a simpler setup for a backup generator or future solar.

Before committing to an upgrade, it helps to understand exactly where your current service stands. Our guide on home electrical load calculations walks through the arithmetic step by step.

How Do You Know If You Need a 400 Amp Electrical Service Upgrade?

Run a load calculation. If total connected loads exceed 160A, your 200A service is already at its safe continuous limit. Adding more loads does not change the math in your favor. Two Level 2 EV chargers require 120A on their own. Add a sauna and a workshop and you are well past what 200A can safely carry.

These symptoms most often drive the call:

• Breakers tripping when two high-draw appliances run at once
• An electrician saying there are no open slots in the panel
• Plans to add a second EV charger, a sauna, a whole-home generator, or a heated garage
• A recent heat pump installation that used the last available capacity
• A home addition or accessory dwelling unit under planning

Any one of these is worth a load calculation. Two or more, and the math usually decides it before the site visit ends.

Panel age is worth factoring in as well. If your service panel is 30 or more years old and a load upgrade is already on the table, discussing replacement at the same time makes sense. Our post on electrical panel lifespan and when to replace covers that question directly.

The Load Math That Breaks 200A Service

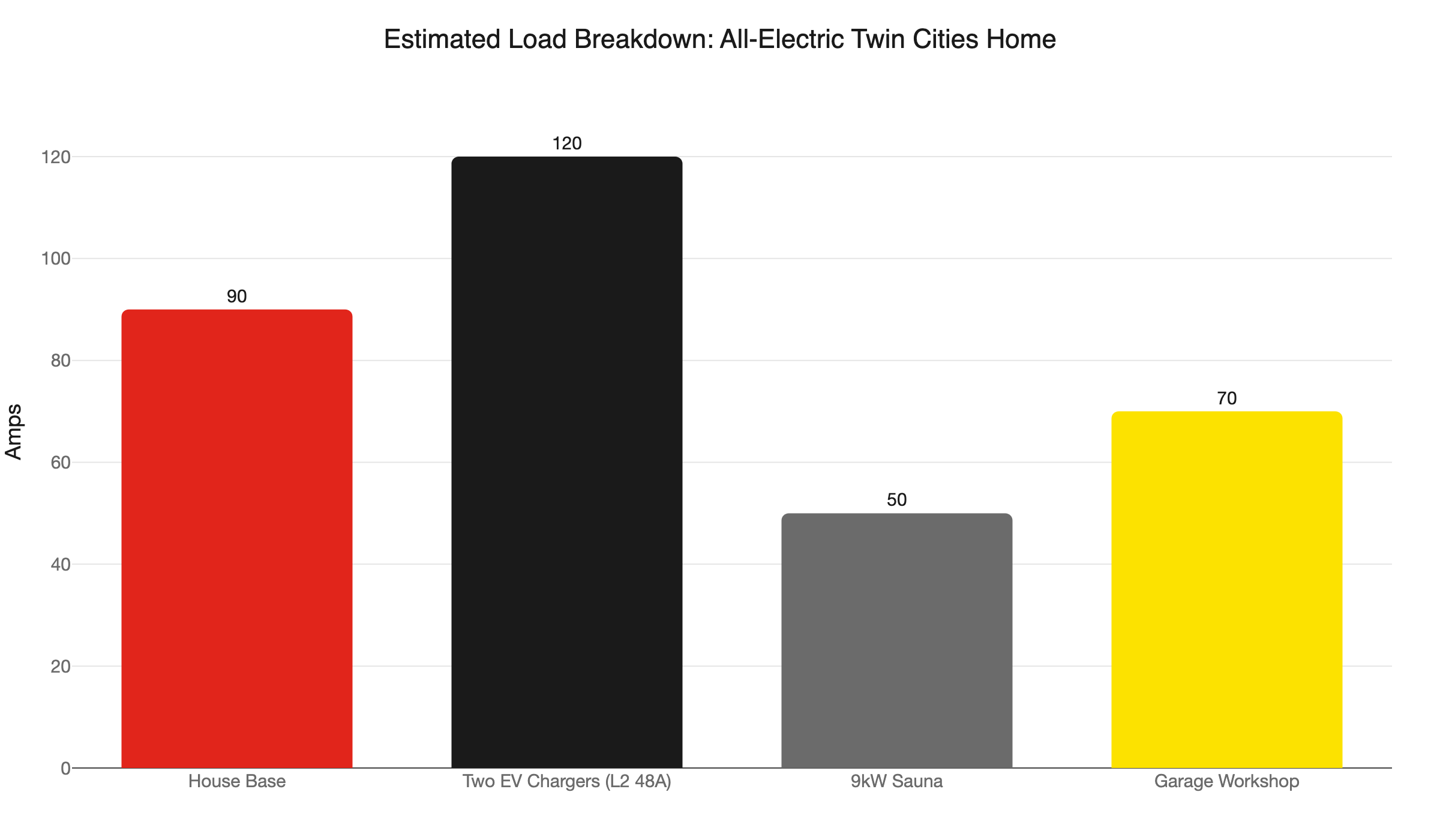

Most articles list EVs, saunas, and workshops in a bullet block and then change the subject. No one runs the numbers. Here is what the actual math looks like for a realistic all-electric Twin Cities home. It is the kind of calculation that turns a vague concern into a clear decision. The load breakdown chart in this post shows each category.

House base load: A cold-climate heat pump, heat pump water heater, kitchen appliances, lighting, and miscellaneous loads add up to roughly 80-100A. Use 90A as a working number. Homes in the Twin Cities that have already electrified HVAC start from a higher baseline than a gas-heated home. A cold-climate heat pump runs year-round. It draws continuous load in both heating and cooling seasons. If your home switched to a heat pump in the last few years, your actual base load is higher than an older load calculation would show.

Two Level 2 EV chargers: NEC Article 625.42 classifies EV chargers as continuous loads. Circuits must be sized at 125% of the load. A 48A charger requires a 60A dedicated circuit. Two chargers consume 120A of panel capacity on their own.

A 9kW Finnish sauna: In the Twin Cities, a residential sauna is a standard home feature, not an exotic load. A 9kW heater at 240V draws 37.5A. At the required 125% continuous-load factor, the circuit must be rated for 50A. It requires its own dedicated double-pole breaker with no shared circuits. Our post on sauna electrical wiring requirements in Minnesota covers the full code picture.

A garage workshop: A 50A welder outlet plus a 20A air compressor circuit adds roughly 70A.

The total: 90 + 120 + 50 + 70 = 330A.

NEC 215.2 sets the safe continuous operating limit at 80% of rated capacity. For a 200A service, that ceiling is 160A. Running a 200A service at or near its full 200A is both a code violation and a fire risk. The 160A ceiling is the number that matters for load planning. This home needs 330A. The gap is not closeable with a subpanel. A subpanel adds slots. It does not add a single amp of service capacity. The only solution is a service upgrade.

What About an Energy Management System?

An Energy Management System can throttle two EV chargers to share available capacity dynamically. But it must be a listed system, properly documented for your inspector. A smartphone app that lets you reduce the charge rate does not qualify under NEC 625.42. An app slider is not a listed EMS, and an inspector will not accept it as one.

More importantly, an EMS on the chargers does nothing for the rest of the load stack. The sauna, the workshop, and the house base are unaffected. If those loads already exceed your service capacity without the chargers factored in, an EMS is not the answer. It is a useful demand management tool when you have service capacity to spare but want to avoid peak simultaneous draws. It is not a substitute for capacity.

One 400 Amp Panel or Two 200 Amp Panels?

Almost always two 200A panels. A single 400A panel is industrial-grade equipment that costs roughly four times a standard 200A panel. It has also faced extended lead times during supply disruptions, adding months to a project timeline at the worst possible moment.

Two 200A panels fed from a 320/400A-rated meter base deliver the same total capacity using standard residential equipment. The two-panel configuration also has real operational advantages beyond the cost difference.

• Generator integration: A 200A manual transfer switch costs roughly $700. A 400A transfer switch runs $3,000 or more.
• Solar and battery backup: Each panel can be designed and interconnected independently. That simplifies the system layout significantly.
• Flexibility: One panel can stay live while work is done on the other. That matters in a large home or one with a critical home office.

The meter base upgrade requires Xcel Energy coordination. They pull the meter, we complete the service work, and they reinstall. That scheduling step typically adds a few days to a week to the overall project timeline, depending on Xcel’s current availability.

What Does a 400 Amp Electrical Service Upgrade Cost in the Twin Cities?

Most full upgrades in the Twin Cities fall in the $10,000 to $20,000 range. That number moves based on several factors. An accurate quote requires a site visit and a current load calculation.

Transformer capacity: Older Twin Cities neighborhoods built in the 1950s through 1970s often have undersized neighborhood transformers. If Xcel requires a transformer upgrade to support the new service, expect added cost and several additional weeks of lead time. Ask about this at the start of planning, not after you have set a project timeline.

Service entrance type: Underground service requires trench work. It is generally more expensive and time-consuming than overhead. Overhead is typically the faster, lower-cost option.

Interior circuit work: The service upgrade handles what comes into the house. New 60A circuits for each EV charger, a 50A circuit for the sauna, and 240V circuits for workshop equipment are additional scope quoted separately. Running those circuits while the panel work is already open is far more cost-effective than returning for them later. If you have a list of planned loads, bring it to the site visit and we quote the whole project together.

Permit fees: Minnesota’s state-administered permit includes a $35 inspection fee for the service source. The permit must be pulled before work begins.

Financing is available for larger projects. Ask us when you call.

What Rebates Are Available for a 400 Amp Electrical Service Upgrade?

Xcel Energy customers can stack up to $1,500 for the panel upgrade and up to $500 for EV charger wiring ($1,200 income-qualified). Federal tax credits for panel upgrades and EV chargers expired in 2025. The Minnesota HEAR program has not launched as of September 2026.

Here is what qualifies and what does not.

Xcel Energy Panel Upgrade Rebate: Up to $1,500 for upgrading to a higher amperage service. This stacks with EV charger, heat pump, and water heater rebates in the same year. One critical condition: replacing a broken panel at the same amperage does not qualify. The upgrade must increase your service size. Verified rebate details at chargehomesolutions.com.

Xcel EV Charger and Wiring Rebate: Up to $500, or up to $1,200 for income-qualified customers. You must enroll in a qualifying Xcel EV charging program before applying. Work must be done by a licensed electrician. Full details at Xcel’s charger and wiring rebate page.

Federal tax credits: The 25C Energy Efficient Home Improvement Credit and the 30C EV charger tax credit both ended in 2025. Any contractor still quoting a 30% federal credit is working from outdated information. Do not budget for it.

Minnesota HEAR Program: The Minnesota HEAR program has not launched as of September 2026. There is no confirmed launch date. When it does launch, income-eligible households may receive up to $4,000 for a panel upgrade (below 80% AMI) or $2,000 (80-150% AMI). There are no retroactive rebates. Work completed before the launch will not qualify. The upgrade must be paired with a qualifying appliance such as a heat pump or heat pump water heater. A standalone panel upgrade does not qualify for HEAR.

Minnesota Permitting: What You Need to Know

Minnesota handles electrical permits at the state level through the Department of Labor and Industry. One permit covers the entire project, whether the home is in Minneapolis, Maple Grove, Woodbury, or Blaine. That is simpler than many states where permits are issued city by city.

As of August 17, 2026, Minnesota operates under the 2026 National Electrical Code. Any permit filed on or after that date must comply with 2026 NEC. If a contractor is quoting your project based on 2023 NEC calculations, ask them to confirm they are current with the code transition date.

The inspection fee for a 0-400A power source is $35. Our team pulls the permit, coordinates the Xcel meter pull, and schedules the DLI inspection. You do not manage any of that on your own.

What to Expect From the Upgrade Process

No malarky: a 400 amp electrical service upgrade is a significant project. Here is the typical sequence from first call to reconnected meter.

Load calculation and scope. We assess your current panel, document your existing circuits and loads, and calculate what your planned loads will add to the total. We also check the condition of your service entrance cable and meter base. A panel that is already past its service life is often included in the scope rather than quoted separately. If the calculation puts you at or over 160A with future loads factored in, the service upgrade is the right path.

Utility coordination. We contact Xcel Energy to schedule the meter pull. Neighborhoods with transformer constraints surface here. If your subdivision dates from the 1960s or 1970s, build extra schedule buffer into your timeline.

Permit application. We pull the state electrical permit through DLI before any work starts.

Service work. The meter base is upgraded, service entrance conductors are run, and two 200A panels are installed and interconnected. Service work typically takes one day on site.

Circuit work. New circuits for EV chargers, the sauna, the workshop, and any other planned loads are run from the new panels. If you locked in this scope at the site visit, this work runs concurrently with the panel installation.

Inspection and reconnection. The DLI inspector verifies the completed work. Xcel reinstalls the meter. Power is restored.

Rebate documentation. We provide the permit records and work documentation you need to file your Xcel rebate applications.

Ready to Stop Running Out of Amps?

If your panel is full and your breakers are tripping, the numbers may already have your answer. Planning EV chargers, a sauna, and a garage workshop will only confirm it. A 400 amp electrical service upgrade is a real investment. It is also the kind of project that pays back in safety, reliability, and the ability to use the equipment you own without managing load rotation yourself.
